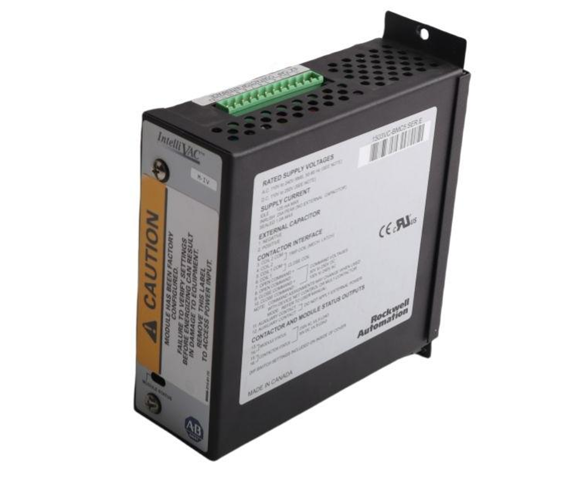

New Allen Bradley 1503VC-BMC5 IntelliVAC Control Module

New Allen Bradley 1503VC-BMC5 IntelliVAC Control Module

The Allen-Bradley 1503VC-BMC5 is an IntelliVAC Control Module from Rockwell Automation's Bulletin 1503VC series, designed to provide precise control for Bulletin 1502 vacuum contactors in medium-voltage motor control applications. It supports both electrically held and mechanically latched contactor types, offering a scalable solution for medium-voltage control applications in industries such as mining, oil & gas, water/wastewater, and power generation.

  • رقم الصنف :

    1503VC-BMC5

  • الطلب (الحد الأدنى للكمية) :

    1 Piece

  • قسط :

    EXW

  • منشأ المنتج :

    Canada / USA

  • ميناء الشحن :

    Wuhan

  • مهلة :

    3~5 days

  • وزن :

    5kg

  • Product Details



    Specification Description
    Manufacturer Rockwell Automation (Allen-Bradley)
    Model 1503VC-BMC5
    Product Family Bulletin 1503VC IntelliVAC
    Product Type Contactor Control Module
    Compatible Contactors Bulletin 1502 Vacuum Contactors (400A and 800A)
    Contactor Type Support Electrically Held and Mechanically Latched
    Input Voltage (AC) 110–240V AC, 50/60 Hz
    Input Voltage (DC) 110–250V DC
    Command Inputs 75–240V rms (AC or DC compatible)
    Status Output Contacts 250V rms, 5A (Resistive); 2A (Reactive, PF = 0.4)
    Selectable Drop-out Time 50, 75, 100, 130, 150, 175, 200, or 240 ms
    TDUV (Power Loss Ride-through) 0.2, 0.5, 1.0, or 2.0 seconds (Requires external capacitor)
    Operating Temperature 0°C to +60°C (32°F to +140°F)
    Storage Temperature -40°C to +85°C
    Humidity Tolerance Up to 95% non-condensing
    Altitude Range -1000 to 5000 meters above sea level
    Shock/Vibration 15 g peak (11 ms) / 2.5 g acceleration (57–150 Hz)
    Configuration 16-bit DIP switch on front panel
    Weight Approx. 1.2 kg
    Country of Origin Canada / USA
    Lifecycle Status Active
    Estimated Lead Time 120 days

    Related Product Model Recommendations



    Model Description Typical Application
    1503VC-BMC3 Lower-rated version with reduced inrush current capacity (up to 300A)  Smaller contactor applications
    1503VC-BMC7 Enhanced model with extended monitoring features  Advanced diagnostics requirements
    1502 Series Bulletin 1502 Vacuum Contactors (400A/800A) Primary contactors controlled by IntelliVAC
    1503VC-BMC5-MC1 Variant with additional configuration options  Specific OEM applications
    IntelliVAC Plus Higher-level control module for firmware updates Advanced system integration

    Payment & Delivery

    FAQs

    Q1: What is the primary function of the 1503VC-BMC5?

    The 1503VC-BMC5 is an IntelliVAC Control Module that provides precise control and monitoring for Bulletin 1502 vacuum contactors. It manages contactor closing and opening operations, monitors status, and provides diagnostic feedback to ensure reliable operation in medium-voltage motor control applications.

    Q2: What types of contactors can this module control?

    The module supports both electrically held and mechanically latched contactor types. It is compatible with 400A and 800A Bulletin 1502 vacuum contactors.

    Q3: What are the input voltage requirements for this module?

    The 1503VC-BMC5 accepts a wide range of control power: 110–240V AC (50/60 Hz) or 110–250V DC. Command inputs are compatible with 75–240V rms (AC or DC) signals.

    Q4: What is TDUV and how does it work?

    TDUV (Time-Delayed Undervoltage) is an optional feature that allows the vacuum contactor to remain closed during brief power losses. The ride-through time is selectable (0.2, 0.5, 1.0, or 2.0 seconds) and typically requires an optional external capacitor. This feature improves coordination with upstream power fuses and prevents nuisance trips during momentary voltage sags.

    Q5: How is the module configured?

    The 1503VC-BMC5 is configured using a 16-bit DIP switch located on the front panel. This allows setting of contactor type, TDUV options, and other operational parameters without requiring external programming tools.
